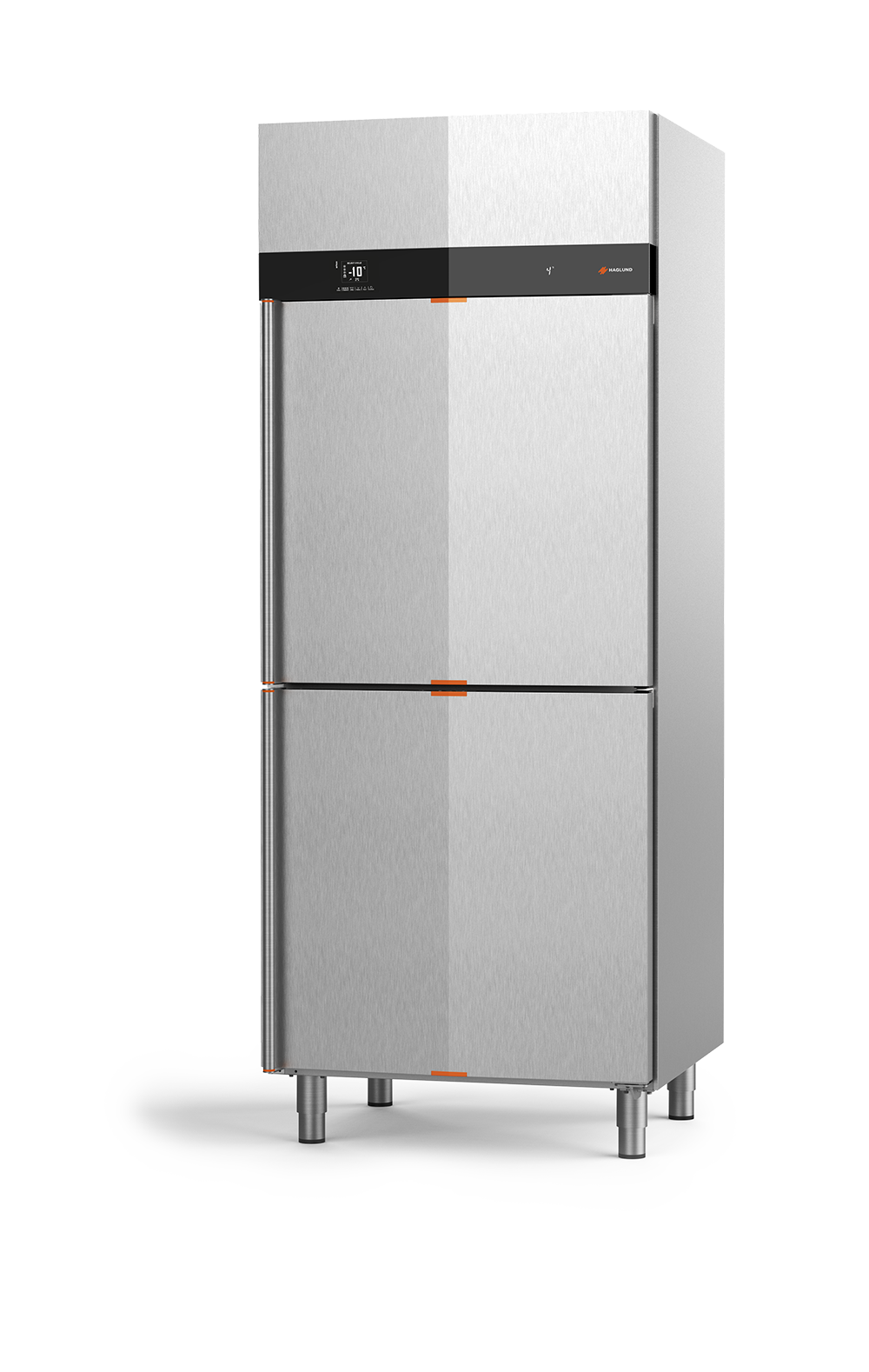

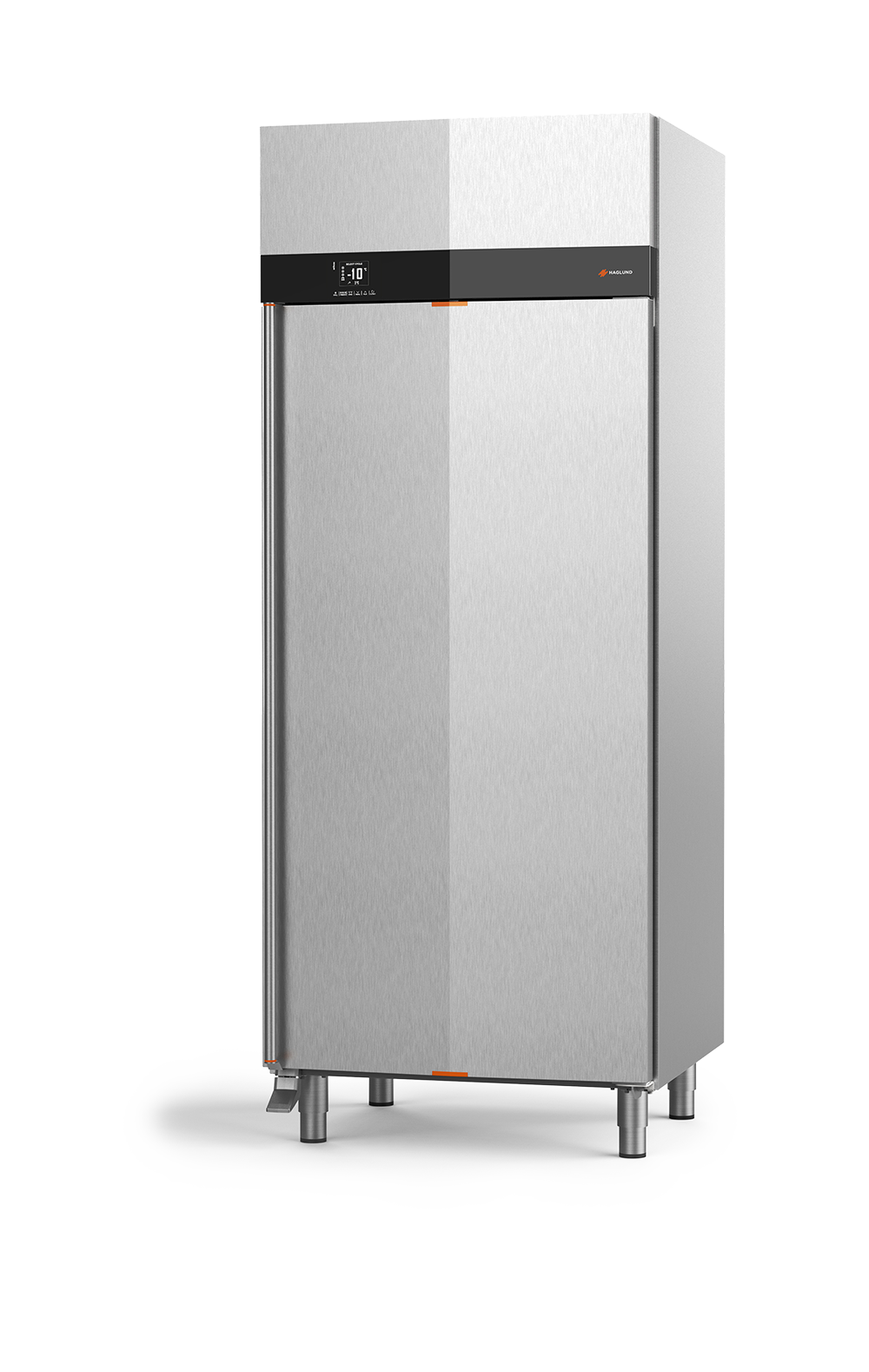

BRIS 850 QUICK CHILLER cabinet
COOLING 50 KG
BRIS 850 QUICK CHILLER MODELS
BUILT-IN UNIT
BRIS 850NA - QUICK CHILLER
BRIS 850NKA - QUICK CHILLER/REFRIGERATOR
BRIS 850NFA - QUICK CHILLER/FREEZER
REMOTE COOLING UNIT
BRIS-850NC - QUICK CHILLER
BRIS-850NKC - QUICK CHILLER/REFRIGERATOR
BRIS-850NFC - QUICK CHILLER/FREEZER
CAPACITY 50 KG
Capacity refers to cooling
from +60°C to +8°C in 4 hours
Cabinets with remote unit are supplied as
standard with valve for R-404
STANDARD EQUIPMENT
FULLY IN STAINLESS STEEL
LOCK
DETACHABLE RE-EVAPORATION TRAY
LOW-ENERGY FANS
5 STAINLESS STEEL GRATE SHELVES
HYGIENE ROOF (C-KYLA)
ADJUSTABLE LEGS 130 - 170MM
OPTIONAL EQUIPMENT
LIGHTING (LED)
FOOT PEDAL
PLUG-IN SENSOR
MECHANICAL TIMER
ADDITION FOR THAWING
WHEELS OF WHICH 2 LOCKABLE
DIMENSIONS AND SIZE
Door width 850mm
Depth 700mm
Depth 765mm with door
Height 2160mm
TECHNICAL DATA
BRIS 850NA - 230VAC/10A - 1200W
BRIS 850NKA - 230VAC/10A - 1050W
BRIS 850NFA - 230VAC/10A - 1050W
BRIS 850NC - 230VAC/10A - 750W
BRIS 850NKC - 230VAC/10A - 875W
BRIS 850NFC - 230VAC/10A - 875W
“DIREKT KYLNING
Kylsystemet har som standard en expansionsventil som ger en noggrann temperaturreglering och anpassar kompressorns funktion efter rådande omgivningstemperatur”
