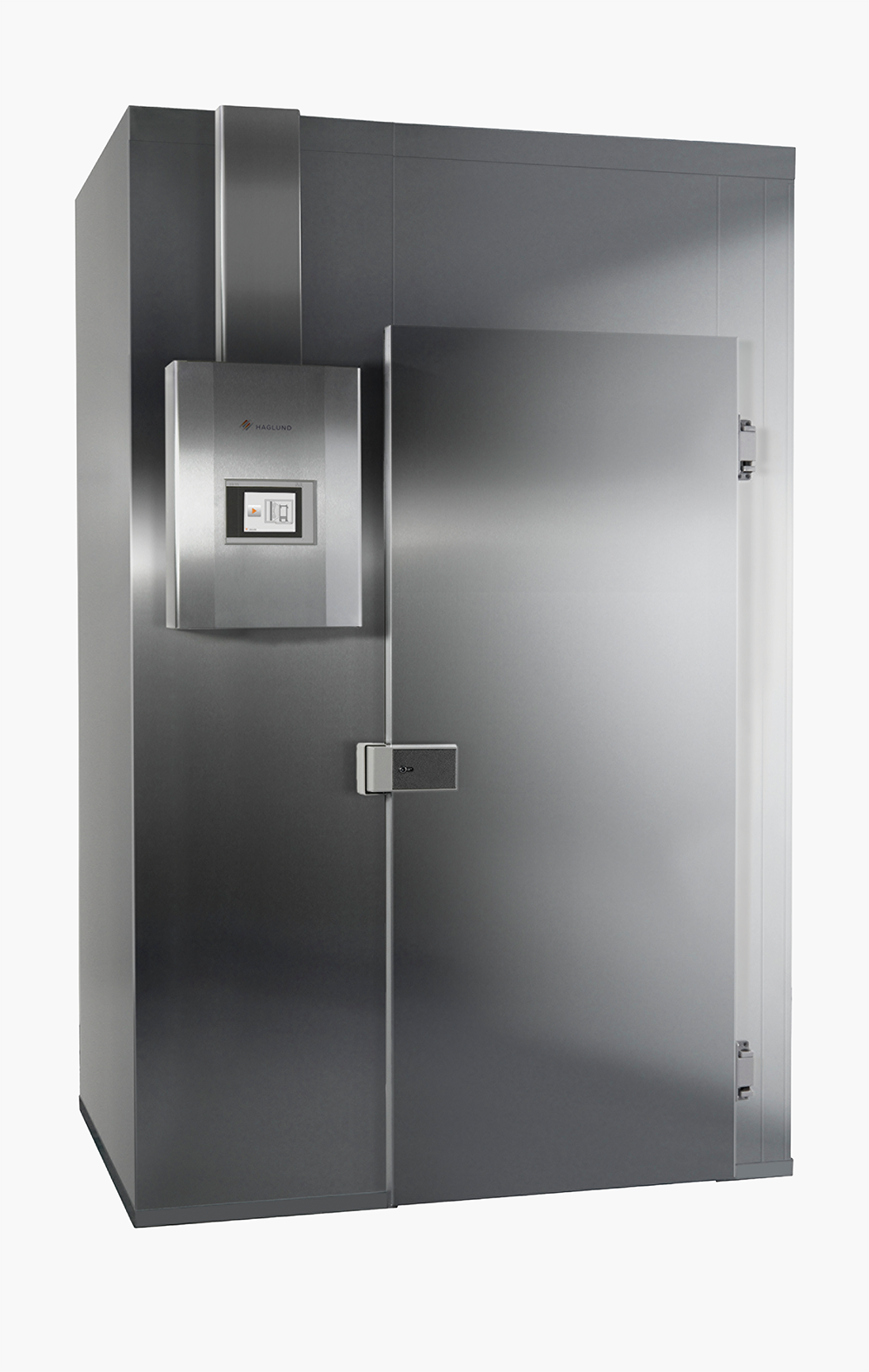

STORM 1800 CHILLER/FREEZER ROOM
BLAST CHILLER 150/300 KG
CENTRAL COOLING
STORM 1800-1 - 1PC GN2/1
STORM 1800-2 - 2PCS GN2/1
STORM 1800F-1 - 1ST GN2/1
STORM 1800F-2 - 2PCS GN2/1
CAPACITY
STORM 1800-1 150 KG
STORM 1800-2 300 KG
CAPACITY REFERS TO COOLING FROM +70°C TO +3°C IN 90 MINUTES WITH A FOOD THICKNESS OF 50 MM AND ISO PACKAGE AS A REFERENCE DIVIDED INTO A 16-CANINE TROLLEY. MOST DISHES ARE COOLED DOWN MUCH FASTER.
STORM 1800-1 120 KG
STORM 1800-2 240 KG
CAPACITY REFERS TO FREEZING FROM +70°C TO -18 DEGREES IN 240 MINUTES
DIMENSIONS AND SIZE
Width 1800 mm
Depth 2640 mm / 1360 mm
Height 2500 mm
STANDARD EQUIPMENT
CONTROL GRAPHIC 5.7" TOUCH PANEL CONTROL IN COLOUR
10 CUSTOM APPLICATIONS CAN BE ADDED BY USERS
HISTORY & LOG CAN BE SAVED IN THE PANEL FOR UP TO ONE YEAR, NO EXTERNAL LOG FUNCTION OR MANUAL HANDLING OF HISTORY IS NECESSARY
EASY-TO-USE USER INTERFACE
BUILT-IN LANGUAGE MANAGEMENT
DATA CAN BE SAVED TO USB (OPTIONAL)
ALARM OUTPUT
COOLING TECHNOLOGY
EQUIPPED WITH THE UNIQUE TECHNOLOGY ON THE MARKET, DIRECT COOLING
A LARGE HIGH-CAPACITY HIGH-CAPACITY FAN
POWERFUL EVAPORATORS FOR EFFICIENT COOLING AND LESS DRYING OF THE PRODUCTS
EACH FRIDGE/FAN PACKAGE COOLS A TROLLEY TO ENSURE A SMOOTH COOLING
AIR CONTROL PLATES ADAPTED TO CANKEY TROLLEY
ENERGY-EFFICIENT COOLING
OPTIONAL EQUIPMENT
GEJDERVAGN, STAINLESS STEEL
Lighting
TUNNEL ING
SEPARATE EVAPORATOR FOR BEARING COOLING
Mount
TECHNICAL DATA
STORM 1500-1 - 3×400VAC+N/10A - 2.7 kW
STORM 1500-2 - 3×400VAC+N/10A - 5.4 kW
STORM 1500F-1 - 3×400VAC+N/10A - 3.8 kW
STORM 1500F-2 - 3×400VAC+N/10A - 7.4 kW
“HELT I ROSTFRITT
Rummet är tillverkat helt i
rostfritt stål och anpassat för
en eller två gejdervagn GN 1/1
och levereras i moduler.
Det kan anpassas med luftstyrplåtar
för en mängd olika typer av gejdervagnar.”
